Orbit
Essence and discretion
Maximum functionality in 60mm diameter, being able to hide the power socket when it is not in use.
Description
Maximum functionality in 60mm diameter
The innovative concept of Orbit allows to have 1 power outlet and up to 2 USB charging connections in a very small space, also offering the possibility of hiding the power outlet when it is not in use by means of a sliding cover, providing safety and cleanliness to the work environment.
Regular charging
Orbit is the example of compact versatility, making possible the combination of 1 power outlet and USB charging type A and type C in standard charging for mobile devices and tablets, offering the possibility of hiding the power outlet when it is not in use.
Smart charging up to 60W
In our pursuit of minimalism and form, our 36W and 60W smart USB type C chargers are the result of our innovative effort, compatible with the Power Delivery 3.0 standard and created by harnessing the capabilities of GaN technology.

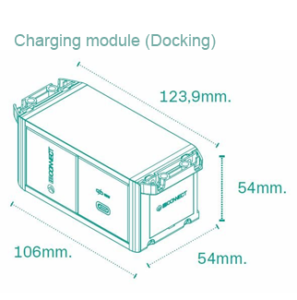

These charging modules (Docking) are installed independently next to the Orbit, providing fast and smart charging up to 60W to mobile phones, tablets and high-power laptops.
Application
- Offices.
- Pods / Meeting booths.
- Libraries / Universities.
- Technical furniture.
- Seats.
- Transports.
- Kitchens.

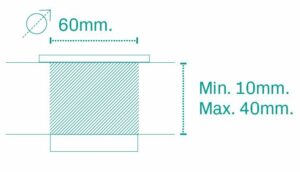

- Surface installation in circular cut-out of 60mm diameter by means of sliding fixings with return, adaptable to desk board from 10mm to 40mm thick.
- Fixing to desk from the bottom (Torx M8).
- Possibility of flush installation with special machining.
Technical specifications
- The 60mm circular cut-out is hidden by the product when installed.
- Its cover is available in white (RAL 9010) or black (RAL 9011) finish.
- It provides 1 power outlet with different combinations of USB charging type A and type C up to 60W.
- It is wired as standard with 230mm power cable with rapid connector on end, allowing individual connection or connection in line quickly and easily.

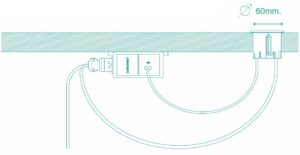

Installation & Connection
Orbit with smart USB charging includes one type C connection cable and another cable with rapid connector on end, providing a quick and easy connection to the charger module (Docking).

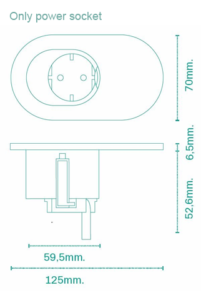

Measures

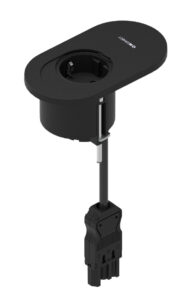

ORBIT – 1 X SOCKET OUTLET
1 black socket outlet fully wired.
Power input through 200mm rear cable with male rapid connector on end.
Sliding lid to hide the socket outlet.

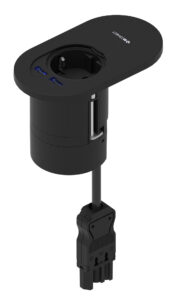

ORBIT – 1 X SOCKET OUTLET + 2 X USB CHARGER TYPE A
1 black socket outlet fully wired.
2 USB charger connector type A (10W).
Power input through 200mm rear cable with male rapid connector on end.
Sliding lid to hide the socket outlet.

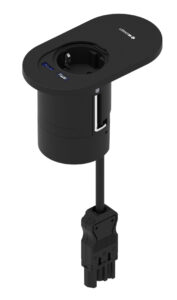

ORBIT – 1 X SOCKET OUTLET + 1 X USB CHARGER TYPE A + 1 X USB CHARGER TYPE C
1 black socket outlet fully wired.
1 USB charger connector type A (5/10W).
1 USB charger connector type C (5/7,5W).
Power input through 200mm rear cable with male rapid connector on end.
Sliding lid to hide the socket outlet.

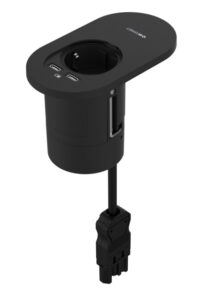

ORBIT – 1 X SOCKET OUTLET + 2 X USB CHARGER TYPE C
1 black socket outlet fully wired.
2 USB charger connector type C (10W).
Power input through 200mm rear cable with male rapid connector on end.
Sliding lid to hide the socket outlet.

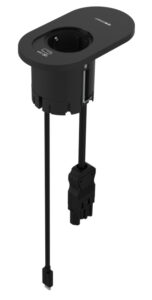

ORBIT – 1 X SOCKET OUTLET + 1 X USB CHARGER TYPE C + 1 X DOCKING (36W)
1 black socket outlet fully wired.
1 USB charger connector type C.
Docking 36W included with the corresponding 250mm cable.
Power input through 200mm rear cable with male rapid
connector on end.
Sliding lid to hide the socket outlet.

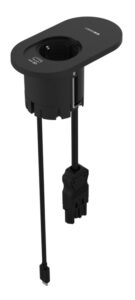

ORBIT – 1 X SOCKET OUTLET + 1 X USB CHARGER TYPE C + 1 X DOCKING (60W)
1 black socket outlet fully wired.
1 USB charger connector type C.
Docking 60W included with the corresponding 250mm cable.
Power input through 200mm rear cable with male rapid
connector on end.
Sliding lid to hide the socket outlet.
