Intro
Built-in design connection
The built-in solution for tables or walls, more compact for electrical, data and multimedia connections.
Description
Very small design without limits
Its design allows manufacturing any custom configuration with very small dimensions. It can be adapted to include the necessary
connections for each project.
Rapid connection
Power supply through cable with rapid connector at the end. Also manufactured with other connection systems on request.
An organized workstation
Our cable organization system can be added to all Intro electrifications to avoid disorder in connections on the work station surface.
Application
- Operational office furniture.
- Libraries.
- School furniture.
- Auditorium chairs.
- Hotel furniture.
- Partitions.
- Data and multimedia connection input by rear direct access.
- Quick and easy to change data and multimedia modules.
- Fixing hidden under the side flaps for easy installation.
- Possibility of integrating a retractable security ring.
Technical specifications
- Made of aluminium, C27 natural anodized finish, matt white (RAL 9010) lacquered or matt black (RAL 9017) lacquered.
- Power input through cable with rapid connector on end.
- Data and multimedia input on the rear part of the profile.
- Fixed by scrollable tabs (5mm to 35mm) with automatic return on disassembly.
Details that make us different
- Available in white.
- Configurable multimedia.
- Custom-made.
- Compatible with Orgatech.
- Compatible with “Ultra-Compact USB Smart Charging System” up to 60W.
Measures

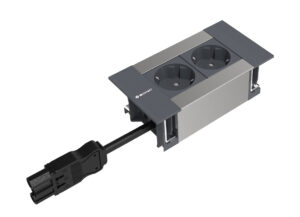

INTRO2.0 – 2 X SOCKET OUTLET
2 socket outlets fully wired.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

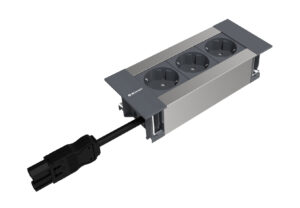

INTRO2.0 – 3 X SOCKET OUTLET
3 socket outlets fully wired.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.
INTRO2.0 – 4 X SOCKET OUTLET
4 socket outlets fully wired with.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

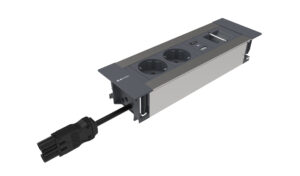

INTRO2.0 – 2 X SOCKET OUTLET + 1 X USB CHARGER TYPE A+C + SECURITY RING
2 socket outlets fully wired.
1 USB charger connector type A (5/10W) + 1 USB charger connector type C (15W).
1 security ring.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

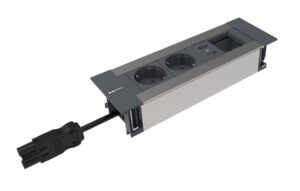

INTRO2.0 – 2 X SOCKET OUTLET + 1 X USB CHARGER TYPE A+C + 1 X EMPTY MODULE
2 socket outlets fully wired.
1 USB charger connector type A (5/10W) + 1 USB charger connector type C (15W).
1 empty module with rear direct access.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

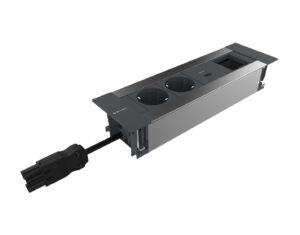

INTRO2.0 – 2 X SOCKET OUTLET + 1 X USB CHARGER TYPE C (36W) + 1 X EMPTY MODULE
2 socket outlets fully wired.
1 USB charger connector type C (36W).
1 empty module with rear direct access.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

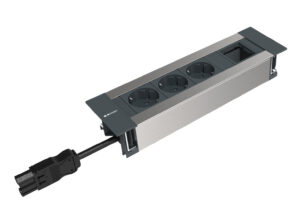

INTRO2.0 – 3 X SOCKET OUTLET + 1 X EMPTY MODULE
3 socket outlets fully wired.
1 empty module with rear direct access.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

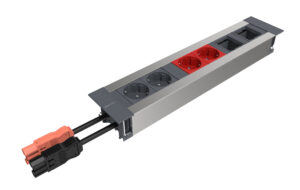

INTRO2.0 – 2 X SOCKET OUTLET + 2 X RED SOCKET OUTLET + 2 X EMPTY MODULE
2 socket outlets fully wired.
2 red socket outlets fully wired.
2 empty modules with rear direct access.
Input for each power circuit through 300mm cable with male rapid connector.
Mounted on aluminium profile.

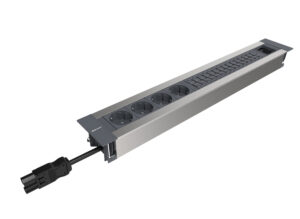

INTRO2.0 – 4 X SOCKET OUTLET + 1 X EMPTY MODULE + ORGANIZER
4 socket outlets fully wired.
1 empty module with rear direct access.
225mm cable organizer.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.
