Bit
Compact multifunction
Multifunction connection point for device charging and data/ multimedia transmission in 30mm diameter.
Description
Configurable minimalism in 30mm diameter
The design and features of Bit reduce visual impact and achieve maximum integration in 30mm diameter to solve connectivity needs in work or rest and leisure environments.
Bit Charger
Our commitment with innovation allows us to offer a wide range of options for charging devices in a truly compact size through charger modules (Docking) that accompany the product Bit independently next to it, providing an innovative concept.
Bit is the example of configurable minimalism, making it possible to charge mobile devices, tablets and laptops through USB type A and C connectors, in standard charging and also fast and intelligent charging up to 60W compatible with Power Deliver 3.0 standard and created by harnessing the capabilities of GaN technology.
Bit Multimedia & Bit Data
In addition to being a charging point, Bit can also fulfill the function of a transmission point, allowing the integration of a multitude of different multimedia and data connectors.
Application
- Offices.
- Pods / Meeting booths.
- Libraries / Universities.
- Technical furniture.
- Seats.
- Transports.
- Kitchens.

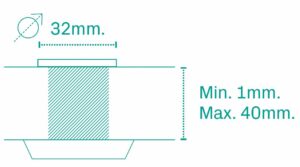

- Surface installation system in a 32mm diameter circular cut-out by means of a fixing ring with return, that allows quick and easy installation, covering a wide range of desk board thicknesses (from 1mm to 40mm).
- Possibility of flush installation with special machining.
- Connection via data or multimedia transmission cable.
- Possibility of installation in lying position underneath of desk board using a fixing accessory.
Technical specifications
- The 32mm circular cut-out is hidden by the product when installed.
- Designed to provide multiple functions of USB charging, as well as data transmission and multimedia connectors.
- Black finish (RAL 9011).
Installation & Connection

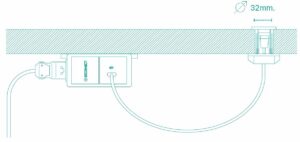

Bit includes a USB connection cable (type A or type C), providing a quick and easy connection to the charger module (Docking).
Measures
BIT CHARGER – 1 X USB TYPE A CHARGER (10W) + DOCKING
1 USB type A charger connector (10W) with connection lead for docking station.
Docking station with USB type A+C (20W).
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT CHARGER – 1 X USB TYPE C CHARGER (15W) + DOCKING
1 USB type C charger connector (15W) with connection lead for docking station.
Docking station with USB type A+C (20W).
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT CHARGER – 1 X USB TYPE C CHARGER (36W) + DOCKING
1 USB type C charger connector (36W) with connection lead for docking station.
Docking station with USB type C (36W).
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT CHARGER – 1 X USB TYPE C CHARGER (60W) + DOCKING
1 USB type C charger connector (60W) with connection lead for docking station.
Docking station with USB type C (60W).
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT DATA – 1 X RJ45 CAT6 UTP
1 RJ45 connector (Cat.6 – UTP) female/female.
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT DATA – 1 X RJ45 CAT6A UTP
1 RJ45 connector (Cat.6A – UTP) female/female.
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT DATA – 1 X RJ45 CAT6 FTP
1 RJ45 connector (Cat.6 – FTP) female/female.
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT DATA – 1 X RJ45 CAT6A FTP
1 RJ45 connector (Cat.6A – FTP) female/female.
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT MULTIMEDIA – 1 X HDMI
1 HDMI connector (female/female).
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT MULTIMEDIA – 1X USB 2.0
1 USB 2.0 connector for data transmission (female/female).
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
BIT MULTIMEDIA – 1X USB 3.0
1 USB 3.0 connector for data transmission (female/female).
Installation in circular cut-out (32mm diameter) by fixing nut with return for thicknesses from 1mm to 40mm.
Black finish RAL 9011.
HORIZONTAL FIXING ACCESSORY
Horizontal fixing accessory.
Black finish RAL 9011.
