Atom
Compact versatility
A true multi-device charging center that provides minimalism and integration.
Description
Maximum functionality in 60mm diameter
Program 60 is the only system on the market capable of providing solutions in 60mm diameter, combining 1 power outlet and up to 2 USB charging connections. A true multi-device charging center that provides minimalism and integration.
Regular charging
Atom is the example of compact versatility, making possible the combination of 1 power outlet and USB charging type A and type C in standard charging for mobile devices and tablets.
Smart charging up to 60W
In our pursuit of minimalism and form, our 36W and 60W smart USB type C chargers are the result of our innovative effort, compatible with the Power Delivery 3.0 standard and created by harnessing the capabilities of GaN technology.
These charging modules (Docking) are installed independently next to the Atom, providing fast and smart charging up to 60W to mobile phones, tablets and high-power laptops.
Application
- Offices.
- Pods / Meeting booths.
- Libraries / Universities.
- Technical furniture.
- Seats.
- Transports.
- Kitchens.
- Surface installation in circular cut-out of 60mm diameter by means of sliding fixings with return, adaptable to desk board from 10mm to 40mm thick.
- Possibility of fixing to desk from the top (Allen 3) or bottom (Torx M8).
- Possibility of flush installation with special machining.
- Possibility of installation in lying position underneath of desk board using a fixing accessory.
Technical specifications
- The 60mm circular cut-out is hidden by the product when installed.
- Its housing ring is available in white (RAL 9010) or black (RAL 9011) finish.
- It provides 1 power outlet with different combinations of USB charging type A and type C up to 60W.
- It is wired as standard with 230mm power cable with rapid connector on end, allowing individual connection or connection in line quickly and easily.
Installation & connection
Atom with smart USB charging includes one type C connection cable and another cable with rapid connector on end, providing a quick and easy connection to the charger module (Docking).

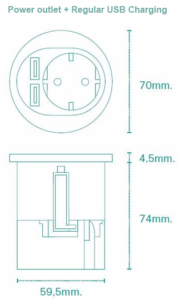

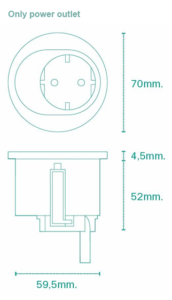

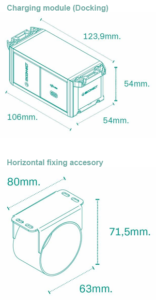

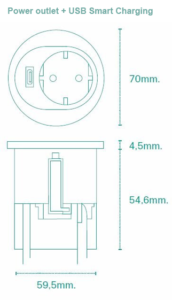

Measures

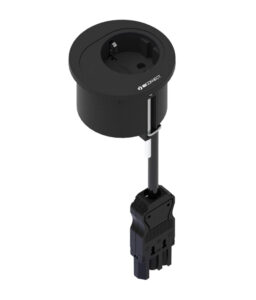

ATOM – 1 X SOCKET OUTLET
1 black socket outlet fully wired.
Power input through 200mm rear cable with male rapid connector on end.
Housing ring in white finish RAL 9010 or black finish RAL 9011.

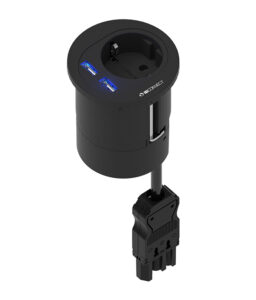

ATOM – 1 X SOCKET OUTLET + 2 X USB CHARGER TYPE A
1 black socket outlet fully wired.
2 USB charger connector type A (10W).
Power input through 200mm rear cable with male rapid connector on end.
Housing ring in white finish RAL 9010 or black finish RAL 9011.

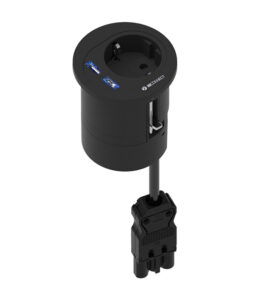

ATOM – 1 X SOCKET OUTLET + 1 X USB CHARGER TYPE A + 1 X USB CHARGER TYPE C
1 black socket outlet fully wired.
1 USB charger connector type A (5/10W).
1 USB charger connector type C (5/7,5W).
Power input through 200mm rear cable with male rapid connector on end.
Housing ring in white finish RAL 9010 or black finish RAL 9011.

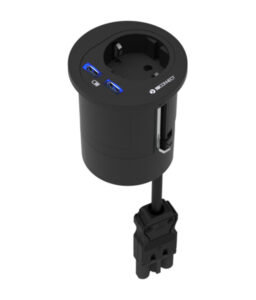

ATOM – 1 X SOCKET OUTLET + 2 X USB CHARGER TYPE C
1 black socket outlet fully wired.
2 USB charger connector type C (10W).
Power input through 200mm rear cable with male rapid connector on end.
Housing ring in white finish RAL 9010 or black finish RAL 9011.

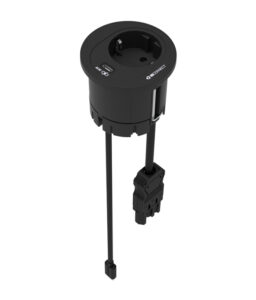

ATOM – 1 X SOCKET OUTLET + 1 X USB CHARGER TYPE C + 1 X DOCKING (36W)
black socket outlet fully wired.
1 USB charger connector type C.
Docking 36W included with the corresponding 250mm cable.
Power input through 200mm rear cable with male rapid connector on end.
Housing ring in white finish RAL 9010 or black finish RAL 9011.

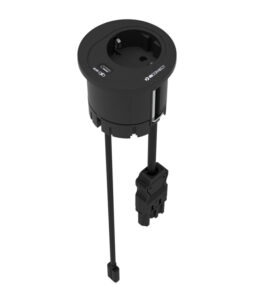

ATOM – 1 X SOCKET OUTLET + 1 X USB CHARGER TYPE C + 1 X DOCKING (60W)
1 black socket outlet fully wired.
1 USB charger connector type C.
Docking 60W included with the corresponding 250mm cable.
Power input through 200mm rear cable with male rapid connector on end.
Housing ring in white finish RAL 9010 or black finish RAL 9011.

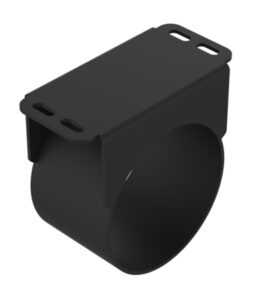

HORIZONTAL HOLDER
Holder for installation in horizontal position.
It includes 4 screws for installation.
Black RAL 9017 finish.
