Box
Open and connect
Discreet electrical, data and multimedia connections for work stations.
Description
Built in multiple connection box
Formed of two elements: a metallic structure (Box) that is built into the table with a rapid fixing system and an internal module (CuboBox) to incorporate sockets and multimedia elements.
Box is available for 3, 4 or 6 elements.
Flexibility in connection
CuboBox electrification kits are easy to extract, which facilitates their exchange in the same Box model. Completely wired internally and power input through cable with male rapid connector on end. Enables the combination of sockets, USB chargers, data and multimedia connections.
The Box Plus model enables adaptation of the top to the colour of the desk, leather or other materials (1mm).
Application
- Operational office furniture.
- Audiovisual and meeting tables.
- Libraries.
- Hotel furniture.
- Makes it possible to keep equipment connected with the cover closed thanks to its brush.
- For boards with a thickness of 20mm. to 40mm. For thicker boards, please consult.
- Quick and easy to change internal modules and data or multimedia connections.
Technical specifications
- Steel Box structure painted white (RAL 9016), grey (RAL 9006) or black (RAL 9017).
- Box Plus only available in grey (RAL 9006) or black (RAL 9017).
- Cover opening 50º.
- CuboBox electrification made of black (RAL 9017) or white (RAL 9016) lacquered aluminium.
- Power input through cable with male rapid connector on end.
Dimensions of the table cut
3 module
Box (mm)
A 274 x B 154 x C 63,5
Table Cut (mm)
a’ 249 (+1) x b’ 147 (+0,5)
4 module
Box (mm)
A 319 x B 154 x C 63,5
Table Cut (mm)
a’ 294 (+1) x b’ 147 (+0,5)
6 module
Box (mm)
A 409 x B 154 x C 63,5
Table Cut (mm)
a’ 384 (+1) x b’ 147 (+0,5)
Details that make us different
- Available in white.
- Configurable multimedia.
- Compatible with “Ultra-Compact USB Smart Charging System” up to 60W.
Measures

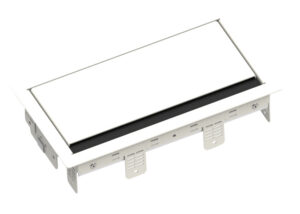

BOX 3 ELEMENTS
3 elements BOX made of painted steel.

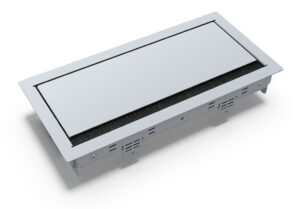

BOX 4 ELEMENTS
4 elements BOX made of painted steel.

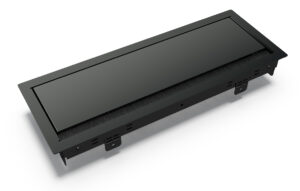

BOX 6 ELEMENTS
6 elements BOX made of painted steel.

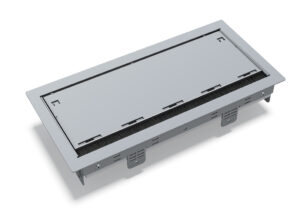

BOX PLUS 4 ELEMENTS
4 elements BOX made of black RAL 9017 or grey RAL 9006 painted steel.
It has a 1mm recess to incorporate the material cut-out.
